HP C501 Adapter, C501-T2 Direct cable for 24-hour parking recording, car accessories

HP C501 ACC 12v 24v adapter direct cable for 24 hours parking recording for HP Dash Cam car camera

• 24-hour parking mode monitoring system
• Auto power off feature
• Adjustable inspection hours
• Low voltage protection system

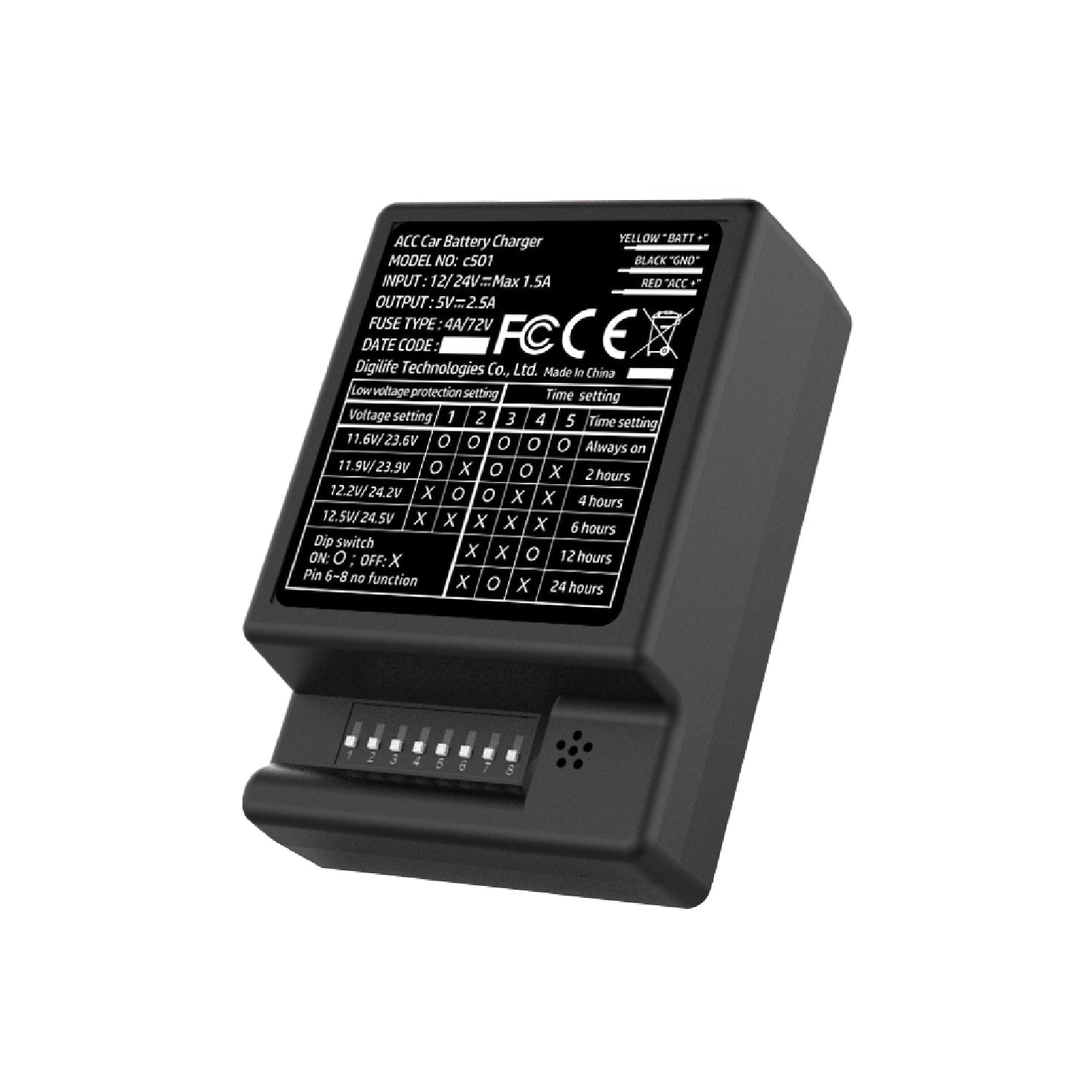

Product information

• Input: 12/24V Max 1.5A
• Output: 5V 2.5A
• Pressure control box size: approx. 64.4x45.6x23.5mm
• Weight: about 160 grams
• Storage humidity: 0% ~ 90% RH
• Storage temperature: -20°C ~ 85°C
• Working temperature: -10°C ~ 60°C
• Fuse: 4A/72V
• Power off timer: 2, 4, 6, 12, 24 hours or always on
• Minimum voltage for power cut:

Car: 11.6V, 11.9V, 12.2V, 12.5V (±0.15V)

Truck: 23.6V, 23.9V, 24.2V, 24.5V (±0.15V)

• Voltage for power recovery:
• Cut-off voltage +0.4V or higher

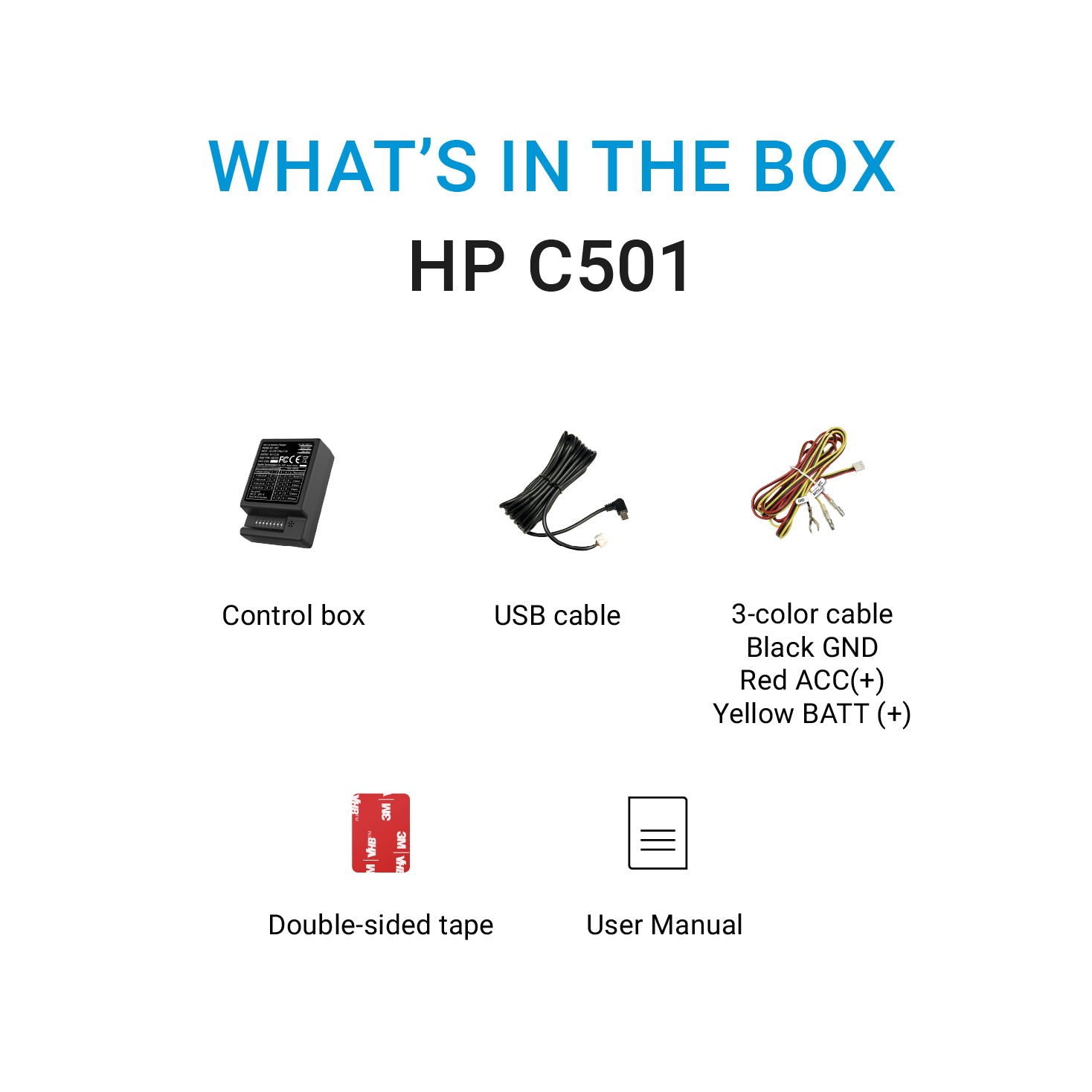

Equipment in the box

• 1 X Control box
• 1 X USB cable
• 1 X 3-color cable
• Black GND
• Red ACC(+)
• Yellow BATT (+)
• 1 X Double-sided tape
• 1 X User Manual


Camera models that can be used with C501:

• HP U818X
• HP F490W
• HP F790
• HP S979W

Cameras that can be used with the C501-T2:

• HP F491X
